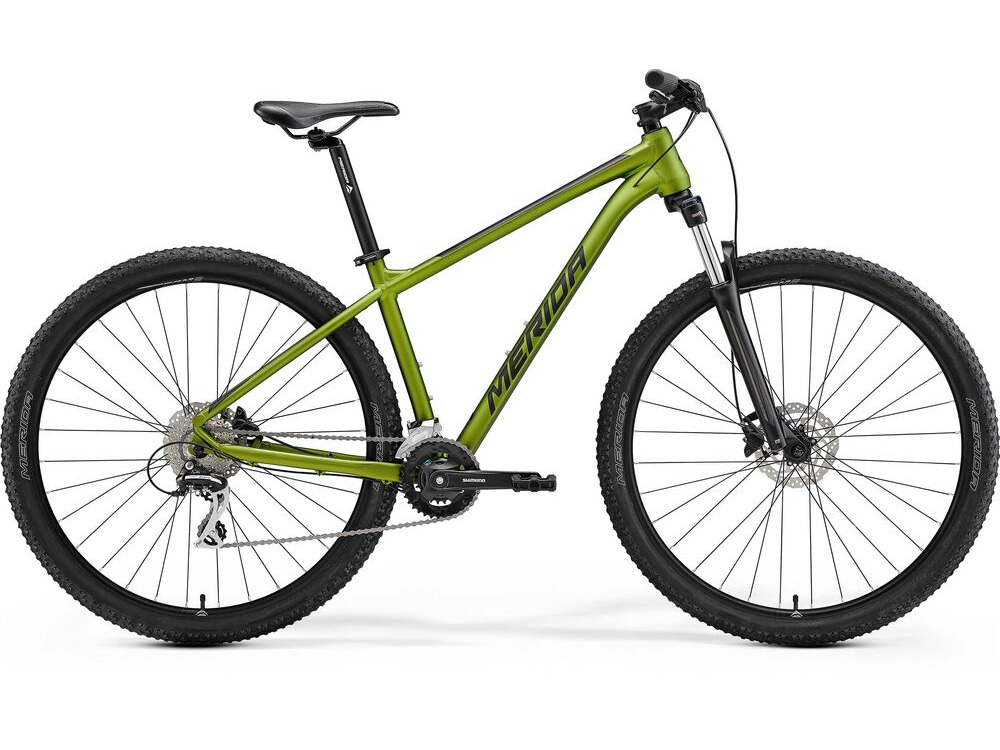

Merida Big Seven 20 2023
Pricing
£700.00
Offer £500.00
Click & Collect ONLY
| Model Year | 2023 |
|---|---|
| Options | XS Black / SIlver S Black / SIlver M Black / SIlver L Black / SIlver |
| Frame | TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25" |
| Forks | Suntour XCT30 HLO; Coil; 100mm travel; lockout. Max. tyre size: 29" x 2.25" |
| Rear Derailleur | Shimano RD-M360 |
| Front Derailleur | Shimano FD-M315-TS |
| Shifters | Shimano ST-EF505 |
| Chainset | Shimano FC-M315-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL) |
| Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
| Chain | Sunrace M84 |
| Freewheel | Sunrace M84 |
| Headset | Merida M2345 |
| Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL) |
| Handlebars | Merida CC; aluminium; 690mm wide; 15mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Levers | Shimano ST-EF505 |
| Rims | Merida CC; 17mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm; 32 spokes; Center lock |
| Spokes | Black steel |
| Tyres | Merida K1080; 27.5" x 2.2"; wire bead |
| Saddle | Merida Sport comfort |
| Seatpost | Merida CC; aluminium; 30.9mm diameter; 15mm lay back |
| Pedals | VP Components, VPE-891 |
| Type | Hardtail |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
